AT 6067

MPT R4

TT/TL

Construction

Bias

Machinery

Backhoe Loader, Implement Machinery

Applications

Digging, Loading

Description

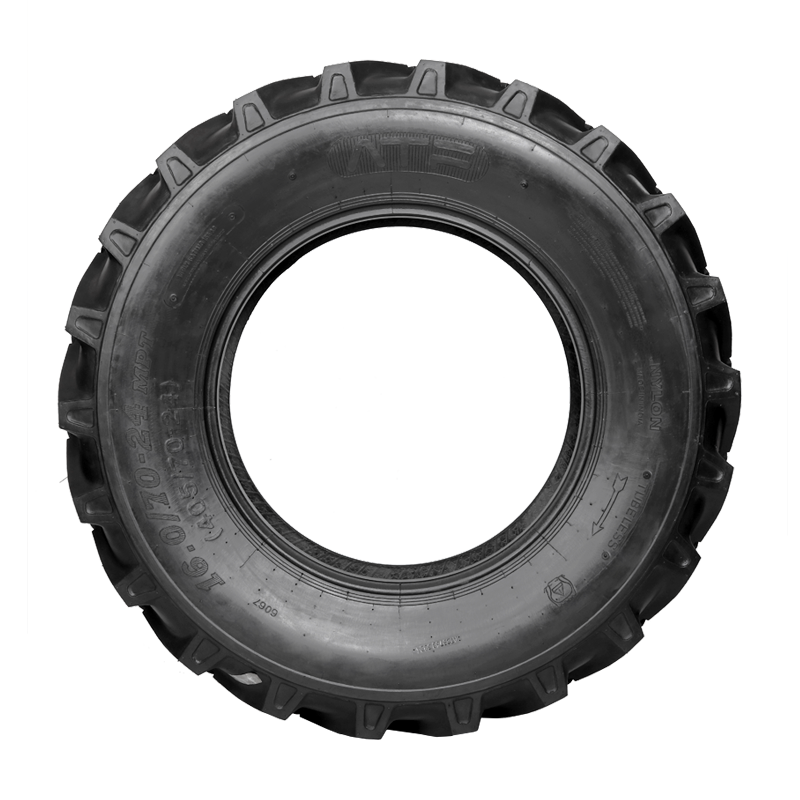

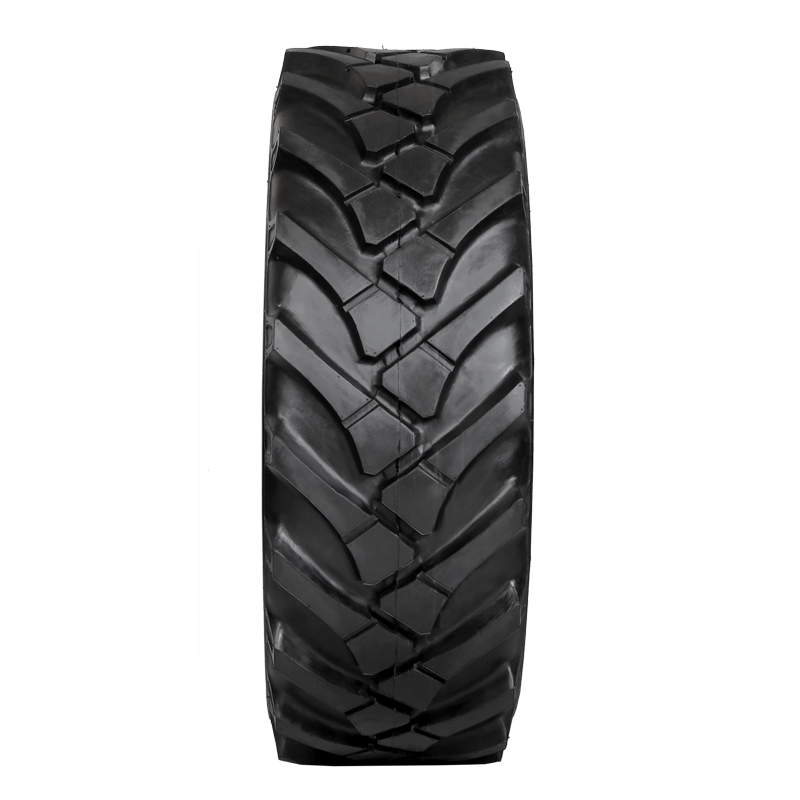

AT 6067, is a bias agro-industrial tire built for implement machinery and backhoe loaders. It offers excellent traction on drive wheels and is engineered for superior performance across all types of surfaces. With robust self-cleaning properties, AT 6067 is also available in special versions�featuring a reinforced casing for added strength and an HD variant for enhanced cut and chip resistance.

Performance

  • Extra cut & chip resistant compound
  • Suitable for on& off road agro industrial application
  • Superior Durability
  • Self-Cleaning
  • Better Traction
  • Multi-Surface Compatibility

?

?

Tyre Specifications

No items found.
Bead DiaTypeSizePly RatingStand Rim Overall DiameterSection WidthR.CSLR Loading CapacitySpeedSi/Li indexInflation pressure
inchmm inchmminchmmmm kglbskmphmphbarpsi
Tire Size Tread Rim Size Tyre Dimension in mm Load Carrying Capacity
on Forklift in Kg @ 25 Kmph
Outer Dia Sidewall Width Tread Width Load Wheel Steer Wheel
20" MPT R416.0/70-20 14 13 SDC 1128 44.4 405 15.9 3350 490 3550 7830 40 25 152 A8 3.5 51
24" MPT R416.0/70-24 16 13 5BL 1180 46.5 405 15.9 3460 546 3875 8540 40 25 155 A8 4.5 65
24" MPT R416.0/70-24 14 13 5BL 1180 46.5 405 15.9 3460 546 3550 7830 40 25 152 A8 4 58
20" MPT R416.0/70-20 16 13 SDC 1128 44.4 405 15.9 3350 490 3875 8540 40 25 155 A8 4 58
20" MPT R412.5-20 16 11 1040 40.9 320 12.6 3090 475 2725 6000 40 25 143 A8 4.5 65
20" MPT R412.5-20 14 11 1040 40.9 320 12.6 3090 475 2500 5510 40 25 140 A8 4 58
18" MPT R412.5-18 14 11 950 37.4 290 11.4 2940 450 2430 5350 40 25 139 A8 4 58
18" MPT R412.5-18 16 11 950 37.4 290 11.5 2940 450 2900 6390 40 25 145 A8 4.3 62
18" MPT R412.5-18 12 11 950 37.4 290 11.4 2940 450 2240 4940 40 25 136 A8 3.5 51
18" MPT R410.5-18 12 9 905 35.6 270 10.6 2700 415 2180 4800 40 25 135 A8 4.5 65
15.3" MPT R411.5/80-15.3 18 9 868 34.2 292 11.5 2578 393 2725 6010 40 25 143 A8 6 87
15.3" MPT R411.5/80-15.3 14 9 868 34.2 292 11.5 2578 393 2430 5350 40 25 139 A8 4.75 69
15.3" MPT R411.5/80-15.3 16 9 868 34.2 292 11.5 2578 393 2575 5680 40 25 141 A8 5.4 78
15.3" MPT R410.0/75-15.3 16 9 774 30.5 258 10.2 2310 355 2060 4540 40 25 133 A8 6.3 91
15.3" MPT R410.0/75-15.3 14 9 774 30.5 258 10.2 2310 355 1900 4180 40 25 130 A8 5.5 80
15.3" MPT R410.0/75-15.3 12 9 774 30.5 258 10.2 2310 355 1700 3740 40 25 126 A8 4.7 68
