TT/TL

Construction

Bias

Machinery

Skid Steer

Applications

Construction

Description

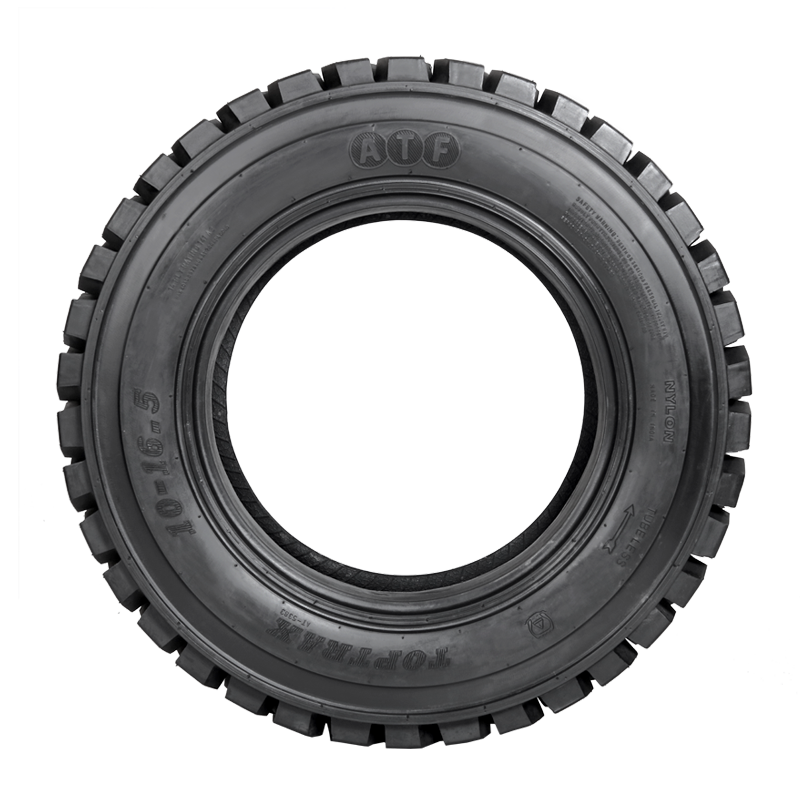

TopTrax 5383, is a heavy-duty block pattern tire made for skid steers in construction environments. Its deep tread and reinforced sidewall deliver superior cut and chip resistance, ensuring long-lasting durability under demanding conditions. Also available in a �special� version for even greater resilience, TopTrax 5383 is built for extended service life and rugged reliability.

Performance

  • Cut and Chip Resistance
  • Superior  Durability
  • Heavy-Duty Performance
  • Deep Tread Design
  • Sidewall Protection

Tyre Specifications

No items found.
Bead DiaTypeSizePly RatingStand Rim Overall DiameterSection WidthR.CSLR Loading CapacitySpeedSi/Li indexInflation pressure
inchmm inchmminchmmmm kglbskmphmphbarpsi
Tire Size Tread Rim Size Tyre Dimension in mm Load Carrying Capacity
on Forklift in Kg @ 25 Kmph
Outer Dia Sidewall Width Tread Width Load Wheel Steer Wheel
16.5" SS Block10-16.5 Block 12 8.25 790 31.1 267 10.5 2285 356 2360 5200 10 6 138A2 6.2 90
16.5" SS Block12-16.5 Block 14 9.75 845 33.3 325 12.8 2510 391 3075 6800 10 6 147A2 6.2 90
16.5" SS Block12-16.5 Block 12 9.75 845 33.3 325 12.8 2510 391 2900 6400 10 6 145A2 5.5 80
16.5" SS Block10-16.5 Block 14 8.25 790 31.1 267 10.5 2285 356 2575 5680 10 6 141A2 7.2 104
16.5" SKID-ND BLOCK12-16.5 14 9.75 845 33.2 325 12.8 2510 391 3075 6800 10 6 147A2 6.2 90
16.5" SKID-ND BLOCK12-16.5 12 9.75 845 33.2 325 12.8 2510 391 2900 6400 10 6 145A2 5.5 80
16.5" SKID-ND BLOCK10-16.5 12 8.25 790 31.1 267 10.5 2285 356 2575 5680 10 6 141A2 7.2 104
16.5" SKID-ND BLOCK10-16.5 10 8.25 790 31.1 267 10.5 2285 356 2360 5200 10 6 138A2 6.2 90
