AT 5491

FL

TT/TL

Construction

Bias

Machinery

Rotor Rake / Tedder, Forklift

Applications

Hay Harvesting, Intermodal Transport / Logistics

Description

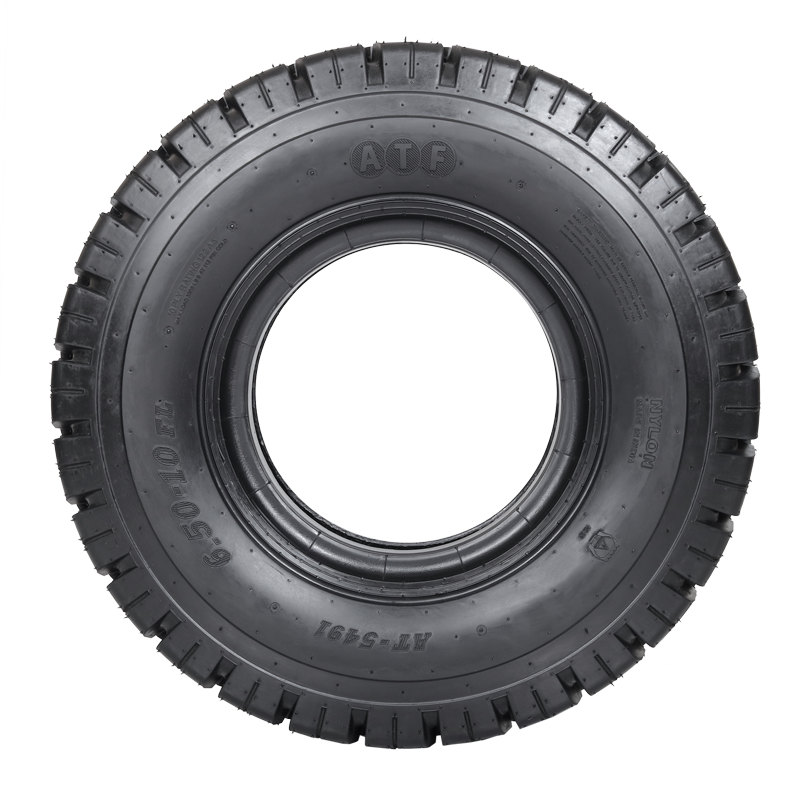

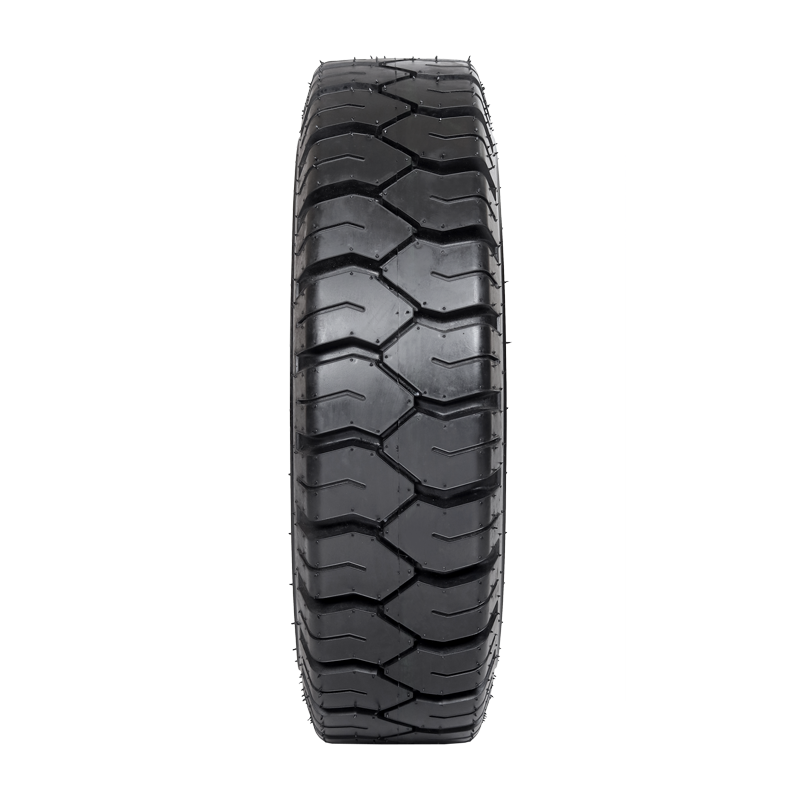

AT 5491 is a multi-purpose tire designed for hay harvesting with rotor rakes and tedders, as well as intermodal logistics operations involving forklifts. Its durable construction ensures long service life, while the specialized tread pattern provides maximum stability during lifting and handling tasks, making it reliable for both field and industrial use.

Performance

  • Cut and Chip Resistance
  • Superior Durability
  • Better Stability
  • Reliable Lifting Support
  • Field & Warehouse Versatility

Tyre Specifications

No items found.
Bead DiaTypeSizePly RatingStand Rim Overall DiameterSection WidthR.CSLR Loading CapacitySpeedSi/Li indexInflation pressure
inchmm inchmminchmmmm kglbskmphmphbarpsi
Tire Size Tread Rim Size Tyre Dimension in mm Load Carrying Capacity
on Forklift in Kg @ 25 Kmph
Outer Dia Sidewall Width Tread Width Load Wheel Steer Wheel
15" FL7.50-15 16 6.0 / 6.5 780 30.7 220 8.7 2301 347 3000 6610 25 16 146 A5 10 145
15" FL28x9-15 (8.15-15) 16 7 720 28.3 220 8.7 2124 320 3210 7080 25 16 148 A5 10.35 150
15" FL8.25-15 18 6.5 855 33.7 240 9.4 2522 380 3650 8045 25 16 153 A5 10 145
15" FL8.25-15 16 6.5 855 33.7 240 9.4 2522 380 3550 7830 25 16 152 A5 9.25 134
15" FL28x9-15 (8.15-15) 14 7 720 28.3 220 8.7 2124 320 3000 6610 25 16 146 A5 10 145
12" FL7.00-12 16 5.0 S 685 27 190 7.5 2021 305 2240 4940 25 16 136 A5 10 145
15" FL7.50-15 14 6.0 / 6.5 780 30.7 220 8.7 2301 347 2800 6170 25 16 144 A5 9.3 135
13" FL23 x 5 10 3.75 P 640 25.2 154 6 1888 285 1450 3200 25 16 121 A5 8 116
12" FL7.00-12 14 5.0 S 685 27 190 7.5 2021 305 2120 4670 25 16 134 A5 9 131
10" FL6.50-10 12 5.0 F 605 23.8 185 7.3 1785 269 1650 3635 25 16 125 A5 9 130
10" FL6.50-10 10 5.0 F 605 23.8 185 7.3 1785 269 1500 3305 25 16 122 A5 7.75 112
8" FL5.00-8 10 3.0 D 467 18.4 135 5.3 1378 208 1090 2400 25 16 111 A5 10 145
9" FL6.00-9 10 4.0 E 550 21.7 170 6.7 1623 245 1320 2910 25 16 118 A5 8.5 123
