SKID-L2/ R4
TT/TL
Bias
Skid Steer
Construction, Loose Soil

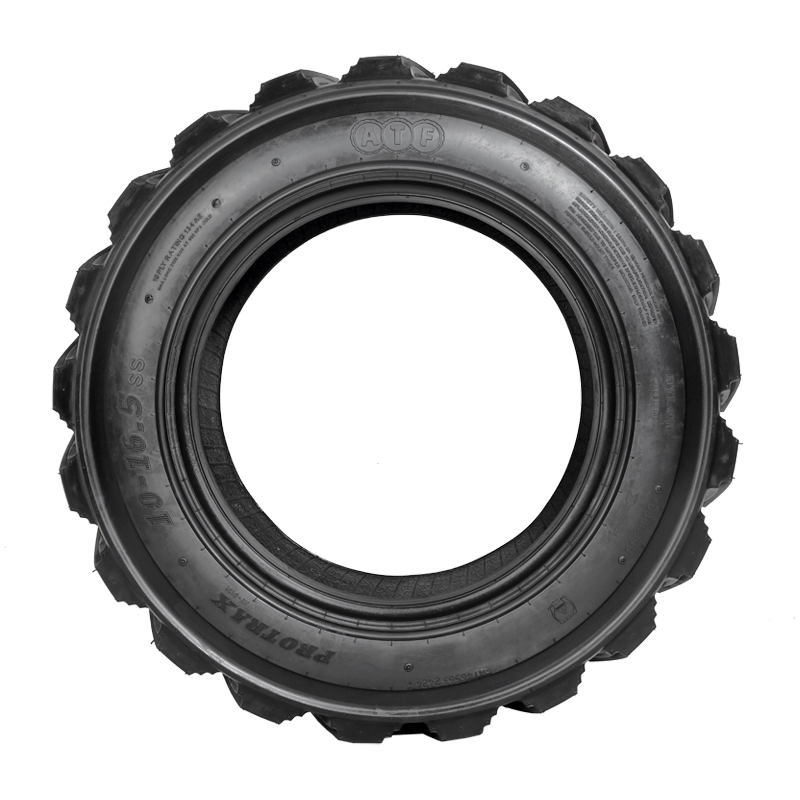

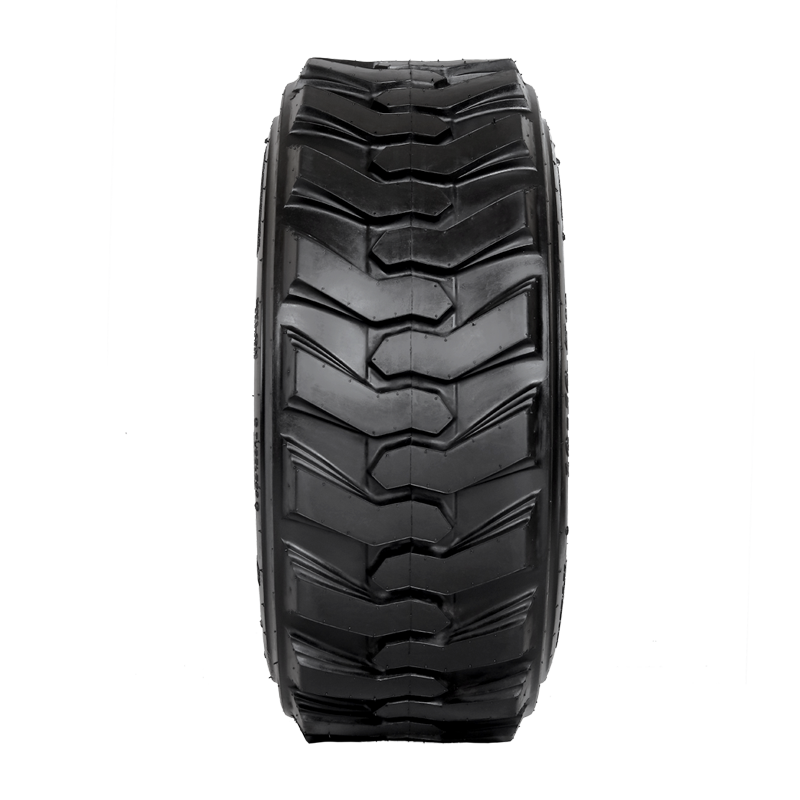

ProTrax 5131, is a heavy-duty tire developed for skid steers operating in demanding construction environments. Its extra-deep tread and reinforced sidewall offer superior cut and chip resistance, while ensuring long-lasting durability. Ideal for loose and abrasive surfaces, this tire is built to withstand tough conditions with consistent performance.
Bead Dia | Type | Size | Ply Rating | Stand Rim | Overall Diameter | Section Width | R.C | SLR | Loading Capacity | Speed | Si/Li index | Inflation pressure | |||||
inch | mm | inch | mm | inch | mm | mm | kg | lbs | kmph | mph | bar | psi | |||||
Tire Size | Tread | Rim Size | Tyre Dimension in mm | Load Carrying Capacity on Forklift in Kg @ 25 Kmph |
|||||||||||||
Outer Dia | Sidewall Width | Tread Width | Load Wheel | Steer Wheel | |||||||||||||
12 | SKID-L2/ R4 | 23x8.50-12 | 12 | 7 | 590 | 23.2 | 212 | 8.3 | 1762 | 270 | 1020 | 2249 | 10 | 6 | 113A2 | 5 | 73 |
16.5" | SKID-L2/ R4 | 33x15.50-16.5 | 12 | 13LB | 857 | 33.7 | 400 | 15.7 | 2563 | 310 | 2750 | 6064 | 10 | 6 | 148A2 | 3.9 | 57 |
16.5" | SKID-L2/ R4 | 31.50x13-16.5 | 10 | 9.75 | 795 | 31.3 | 330 | 13 | 2345 | 363 | 1600 | 3528 | 40 | 25 | 124A8 | 4.8 | 69 |
15" | SKID-L2/ R4 | 31x15.5-15 | 10 | 13LB | 790 | 31.1 | 395 | 15.6 | 2411 | 375 | 2430 | 5358 | 10 | 6 | 139A2 | 4.2 | 61 |
15" | SKID-L2/ R4 | 27x10.50-15 | 8 | 8.5 | 684 | 26.9 | 256 | 10.1 | 2037 | 326 | 1400 | 3087 | 10 | 6 | 120A2 | 4.2 | 61 |
12" | SKID-L2/ R4 | 23x8.50-14 | 4 | 12 | 584 | 23 | 215 | 8.5 | 710 | 1560 | 10 | 6 | 96A2 | 2.4 | 35 | ||
15" | SKID-L2/ R4 | 27x8.50-15 | 8 | 7 | 678 | 26.7 | 217 | 8.5 | 2030 | 320 | 1170 | 2579.85 | 10 | 6 | 118A2 | 3.4 | 49 |
16.5" | SKID-L2/ R4 | 12-16.5 SS | 14 | 9.75 | 830 | 32.7 | 314 | 12.4 | 2410 | 381 | 3075 | 6800 | 10 | 6 | 147 A2 | 6.2 | 90 |
16.5" | SKID-L2/ R4 | 10-16.5 SS | 10 | 8.25 | 770 | 30.3 | 263 | 10.4 | 2286 | 356 | 2120 | 4680 | 10 | 6 | 134A2 | 5.2 | 74 |
16.5" | SKID-L2/ R4 | 10-16.5 SS | 12 | 8.25 | 770 | 30.3 | 263 | 10.4 | 2286 | 356 | 2360 | 5200 | 10 | 6 | 138A2 | 6.2 | 90 |
16.5" | SKID-L2/ R4 | 12-16.5 SS | 12 | 9.75 | 830 | 32.7 | 314 | 12.4 | 2410 | 381 | 2900 | 6400 | 10 | 6 | 145 A2 | 5.2 | 75 |
19.5" | SKID-L2/ R4 | 15-19.5 | 16 | 11.75 | 1035 | 40.7 | 400 | 15.7 | 3053 | 468 | 4875 | 10700 | 10 | 6 | 163 A2 | 5.5 | 80 |
19.5" | SKID-L2/ R4 | 15-19.5 | 14 | 11.75 | 1035 | 40.7 | 400 | 15.7 | 3053 | 468 | 4625 | 10200 | 10 | 6 | 161 A2 | 4.8 | 70 |
17.5" | SKID-L2/ R4 | 14-17.5 | 16 | 10.5 | 920 | 36.2 | 350 | 13.8 | 2743 | 420 | 4125 | 9090 | 10 | 6 | 157 A2 | 6.2 | 90 |
17.5" | SKID-L2/ R4 | 14-17.5 | 14 | 10.5 | 920 | 36.2 | 350 | 13.8 | 2743 | 420 | 3875 | 8550 | 10 | 6 | 155 A2 | 5.5 | 80 |
16.5" | SKID-L2/ R4 | 12-16.5 | 14 | 9.75 | 830 | 32.6 | 314 | 12.3 | 2410 | 381 | 3075 | 6800 | 10 | 6 | 147A2 | 6.2 | 90 |
16.5" | SKID-L2/ R4 | 12-16.5 | 12 | 9.75 | 830 | 32.6 | 314 | 12.3 | 2410 | 381 | 2800 | 6175 | 10 | 6 | 144A2 | 5.2 | 75 |
16.5" | SKID-L2/ R4 | 12-16.5 | 14 | 9.75 | 840 | 33.1 | 314 | 12.4 | 2434 | 381 | 3075 | 6800 | 10 | 6 | 147 A2 | 6.2 | 90 |
16.5" | SKID-L2/ R4 | 12-16.5 | 12 | 9.75 | 840 | 33.1 | 314 | 12.4 | 2434 | 381 | 2900 | 6400 | 10 | 6 | 145 A2 | 5.5 | 80 |
16.5" | SKID-L2/ R4 | 10-16.5 | 12 | 8.25 | 770 | 30.3 | 263 | 10.3 | 2286 | 356 | 2360 | 5200 | 10 | 6 | 138A2 | 6.2 | 90 |
16.5" | SKID-L2/ R4 | 10-16.5 | 10 | 8.25 | 770 | 30.3 | 263 | 10.3 | 2286 | 356 | 2120 | 4680 | 10 | 6 | 134A2 | 5.2 | 74 |
16.5" | SKID-L2/ R4 | 10-16.5 | 12 | 8.25 | 770 | 30.3 | 263 | 10.4 | 2286 | 356 | 2360 | 5200 | 10 | 6 | 138 A2 | 620 | 90 |
16.5" | SKID-L2/ R4 | 10-16.5 | 10 | 8.25 | 770 | 30.3 | 263 | 10.4 | 2286 | 356 | 2120 | 4680 | 10 | 6 | 134 A2 | 5.2 | 75 |
