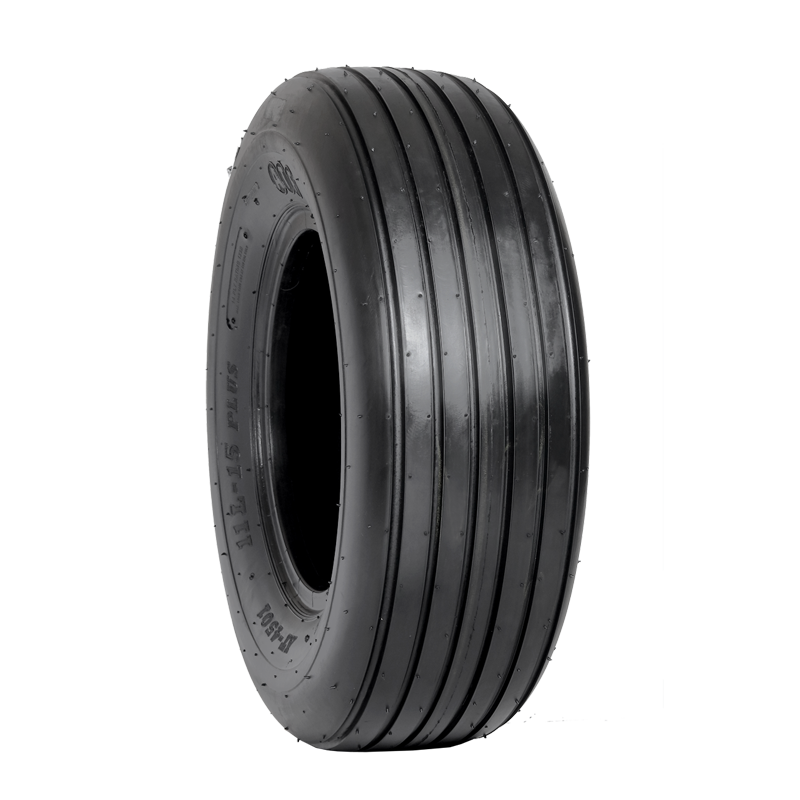

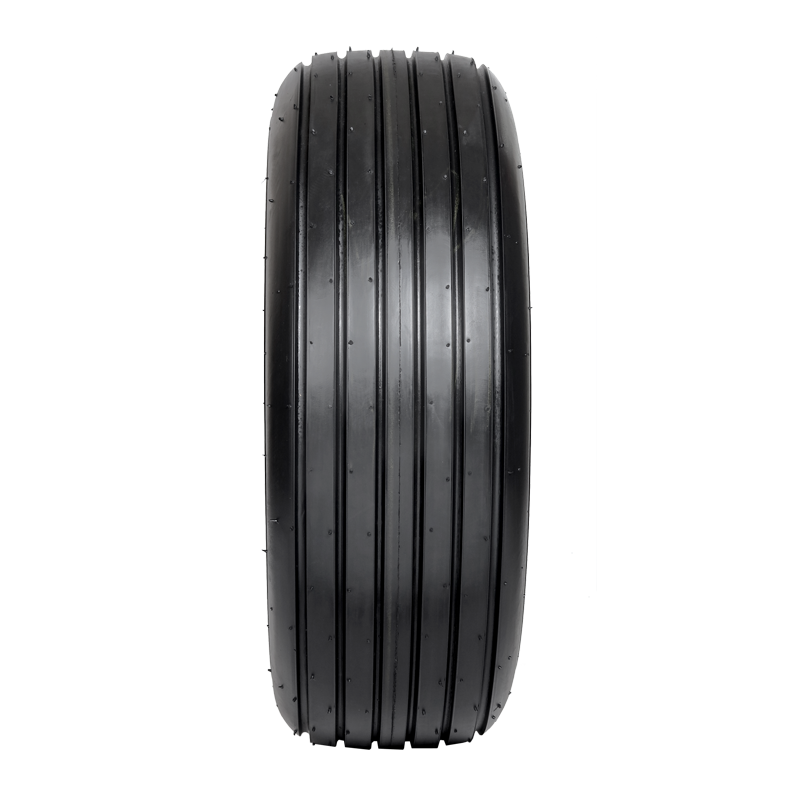

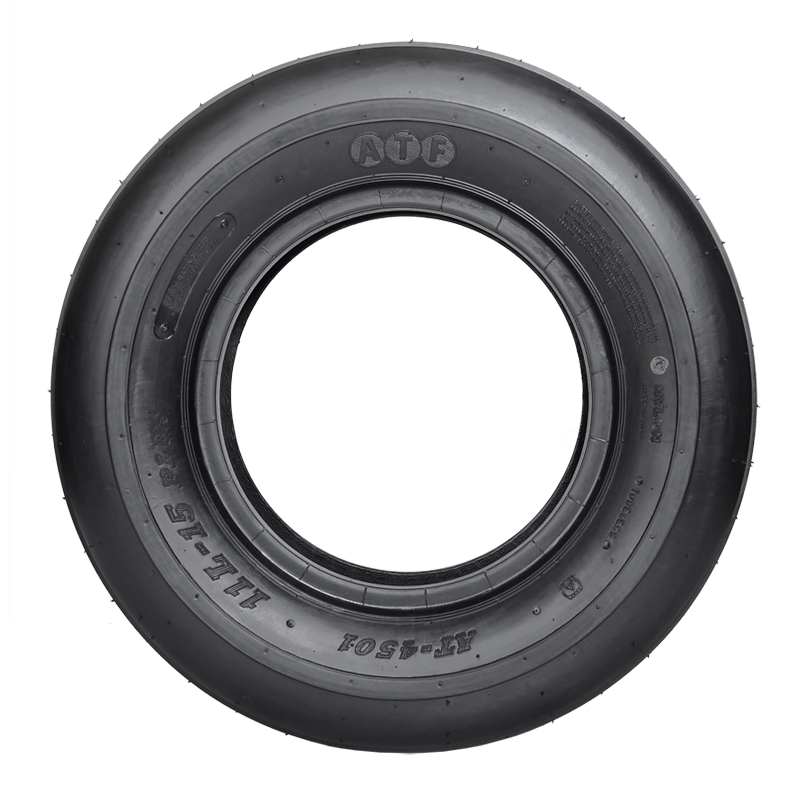

AT-4501

I-1, I-1/Baler

TT/TL

Construction

Bias

Machinery

Balers, Seeders, Fertilizer

Applications

Transport, Soil Protection

Description

AT 4501 is a low-section implement and trailer tire engineered for high load capacity while minimizing soil compaction. Its special tread compound offers excellent resistance to stubble punctures and cuts, making it ideal for demanding farm operations. The wide tread design ensures superior flotation, reducing soil damage and enhancing overall field performance.

Performance

  • High Load Capacity
  • Minimal Soil Compaction
  • Stubble & Cut Resistance
  • Wide Tread for Flotation
  • Durability

Tyre Specifications

No items found.
Bead DiaSizePly RatingStand Rim Overall DiameterSection WidthR.CSLR Loading CapacitySpeedSi/Li indexInflation pressure
inchmm inchmminchmmmm kglbskmphmphbarpsi
Tire Size Tread Rim Size Tyre Dimension in mm Load Carrying Capacity
on Forklift in Kg @ 25 Kmph
Outer Dia Sidewall Width Tread Width Load Wheel Steer Wheel
14" 11L-14 8 8 730 28.7 235 9.3 2154 326 1120 2470 50 31 112 B 2.5 36
14" 11L-14 10 8 730 28.7 235 9.3 2154 326 1250 2755 50 31 116 B 3 43
15" 9.5L-15 12 7 765 30.1 240 9.4 2242 340 1450 3200 50 31 121 B 4.4 64
15" 9.5L-15 14 7 765 30.1 240 9.4 2242 340 1600 3530 50 31 124 B 5.4 78
15" 11L-15 12 8 LB 770 30.3 270 10.6 2256 342 1450 3200 50 31 121 B 3.6 52
15" 11L-15 14 8 LB 770 30.3 270 10.6 2256 342 1550 3420 50 31 123 B 4.1 60
15" 12.5L-15 12 10 LB 810 31.9 310 12.2 2403 302 1750 3858 50 31 127 B 3.6 52
15" 12.5L-15 14 10 LB 810 31.9 310 12.2 2403 302 1950 4300 50 31 131 B 4.15 60
15" 31x13.50-15 8 10 LB 782 30.8 351 13.8 2315 362 1320 2910 50 31 118 B 3.8 55
15" 31x13.50-15 10 10 LB 782 30.8 351 13.8 2315 362 1400 3086 50 31 120 B 4.1 59
15" 31x13.50-15 12 10 LB 782 30.8 351 13.8 2315 362 1600 3520 50 31 124 B 5.2 75
15" 31x13.50-15 16 10 LB 782 30.8 351 13.8 2315 362 1900 4191 50 31 130 B 5.46 79
