AT 7255

Construction

Bias

Machinery

Implement Machinery, Tractor, Trailer

Applications

Field and Road Transport, Soil Tillage

Description

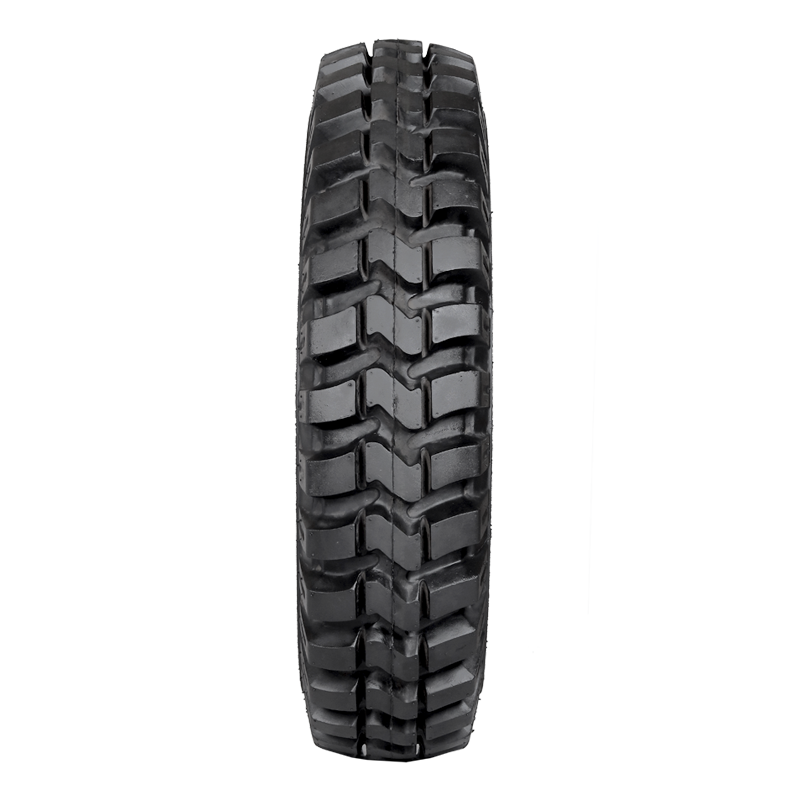

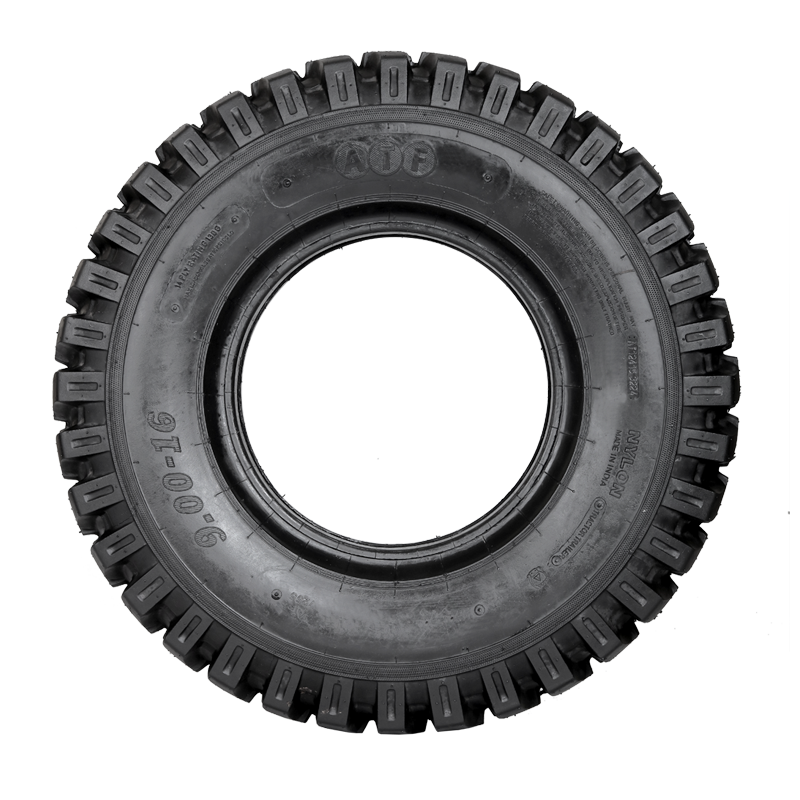

AT 7255 is designed for use on tractors, implements, and trailers, delivering optimal performance in both soil tillage and transport applications. Its specialized block tread pattern offers superior steering control and makes it ideal for heavy-duty tasks. For added resilience, an HD version is available with enhanced cut and chip resistance, extending the tire�s durability under harsh working conditions.

Performance

  • Cut and ChipResistance
  • Heavy-Duty Performance
  • Steering Control
  • Field & Road Versatility
  • Reliable Traction

Tyre Specifications

No items found.
Bead DiaTypeSizePatternPly RatingTT / TLStand Rim Overall DiameterSection WidthR.CSLR Loading CapacitySpeedSi/Li indexInflation pressure
inchmm inchmminchmmmm kglbskmphmphbarpsi
Tire Size Tread Rim Size Tyre Dimension in mm Load Carrying Capacity
on Forklift in Kg @ 25 Kmph
Outer Dia Sidewall Width Tread Width Load Wheel Steer Wheel
16" Semi-Lug9.00-16 AT 7255 14 TT/TL 6.5 900 35.4 245 9.6 2685 406 1950 4300 90 56 131 G 6.2 90
16" Semi-Lug9.00-16 AT 7255 16 TT/TL 6.5 900 35.4 245 9.6 2685 406 2120 4670 90 56 134 G 7.25 105
16" Semi-Lug9.00-16 AT 7255 18 TT/TL 6.5 H 900 35.4 245 9.6 2685 406 1950 4300 40 25 131 A8 5.6 81
16" Semi-Lug9.00-16 AT 7255 16 TT/TL 6.5 H 900 35.4 245 9.6 2685 406 1850 4080 40 25 129 A8 5 73
16" Semi-Lug9.00-16 AT 7255 14 TT/TL 6.5 H 900 35.4 245 9.6 2685 406 1750 3860 40 25 127 A8 4.4 64
16" Semi-Lug9.00-16 AT 7255 12 TT/TL 6.5 H 900 35.4 245 9.6 2685 406 1600 3530 40 25 124 A8 3.8 55
