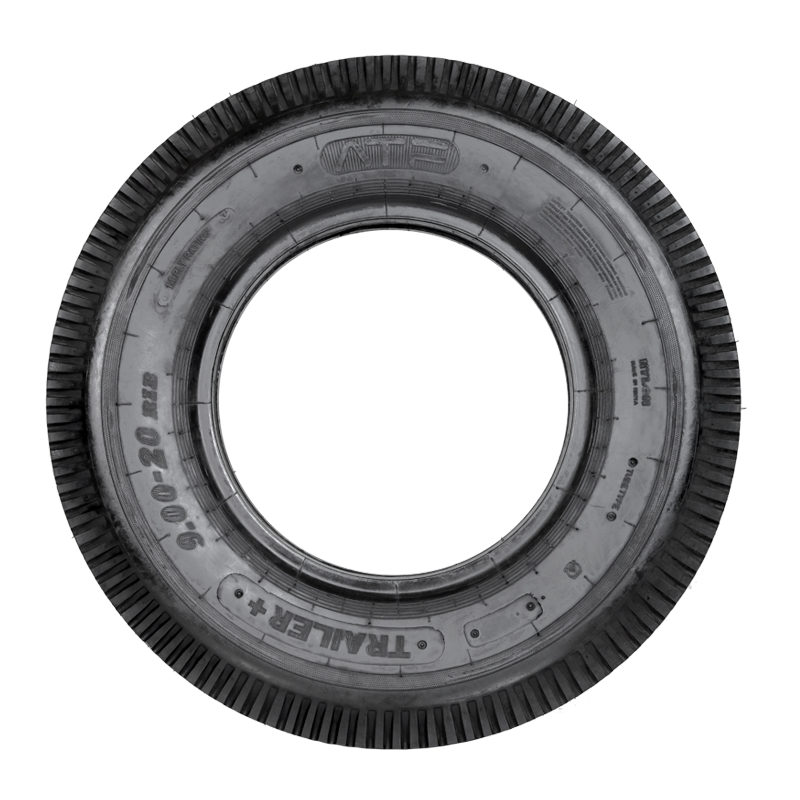

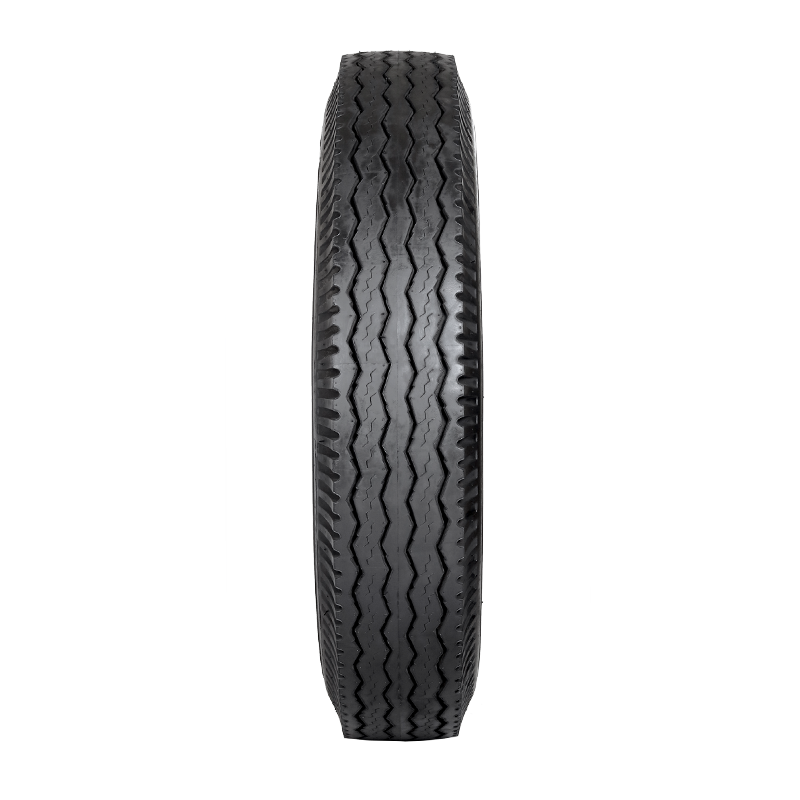

AT 7228

Construction

Bias

Machinery

Trailer

Applications

Transport, Road Oriented

Description

AT 7228 is a road-focused agricultural tire designed for trailers used in transport applications. Built for long-distance durability, it offers high mileage and an extended service life. The tire supports high load capacities even at elevated speeds, making it ideal for modern farming logistics. An HD version with a special compound is also available for enhanced performance under demanding conditions.

Performance

  • Superior Durability
  • High Load Capacity
  • High Mileage
  • Road-Ready Performance
  • Extended Service Life
  • Excellent Traction

Tyre Specifications

No items found.
Bead DiaTypeSizePatternPly RatingTT / TLStand Rim Overall DiameterSection WidthR.CSLR Loading CapacitySpeedSi/Li indexInflation pressure
inchmm inchmminchmmmm kglbskmphmphbarpsi
Tire Size Tread Rim Size Tyre Dimension in mm Load Carrying Capacity
on Forklift in Kg @ 25 Kmph
Outer Dia Sidewall Width Tread Width Load Wheel Steer Wheel
20" Rib12.00-20 AT 7228 18 TT/TL 8.5 1120 44.1 315 12.4 3282 504 3750 8260 100 62 154 J 7.95 115
20" Rib12.00-20 AT 7228 16 TT/TL 8.5 1120 44.1 315 12.4 3282 504 3550 7830 100 62 152 J 7.25 105
20" Rib11.00-20 AT 7228 18 TT/TL 8 1085 42.7 290 11.4 3212 499 3350 7380 100 62 150 J 8.25 115
20" Rib11.00-20 AT 7228 16 TT/TL 8 1085 42.7 290 11.4 3212 499 3250 7160 100 62 149 J 7.95 115
20" Rib10.00-20 AT 7228 18 TT/TL 7.5 1054 41.5 274 10.8 3088 474 3075 6780 100 62 147 J 8.25 120
20" Rib10.00-20 AT 7228 16 TT/TL 7.5 1054 41.5 274 10.8 3088 474 3000 6610 100 62 146 J 7.95 115
20" Rib9.00-20 AT 7228 18 TT/TL 7 1019 40.1 259 10.2 2986 459 2800 6170 100 62 144J 8.2 119
20" Rib9.00-20 AT 7228 16 TT/TL 7 1019 40.1 259 10.2 2986 459 2650 5840 100 62 142 J 7.95 115
20" Rib10.00-20 AT 7228 16 TT/TL 7.5 1054 41.5 274 10.8 3088 474 3050 6720 40 25 147 A8 8 116
20" Rib9.00-20 AT 7228 16 TT/TL 7 1019 40.1 259 10.2 2986 459 2715 5990 40 25 143 A8 7.25 105
