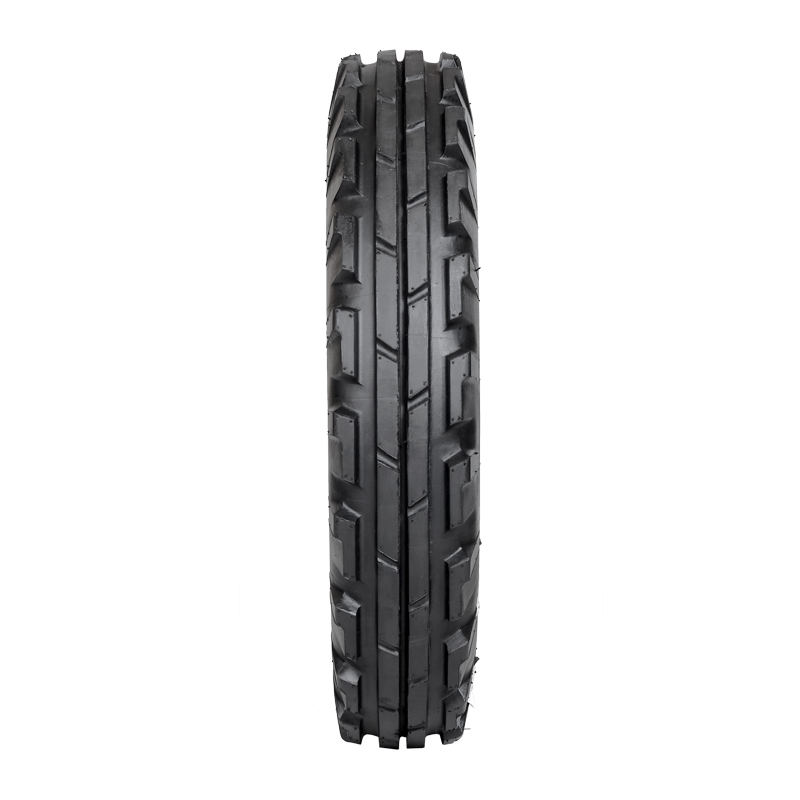

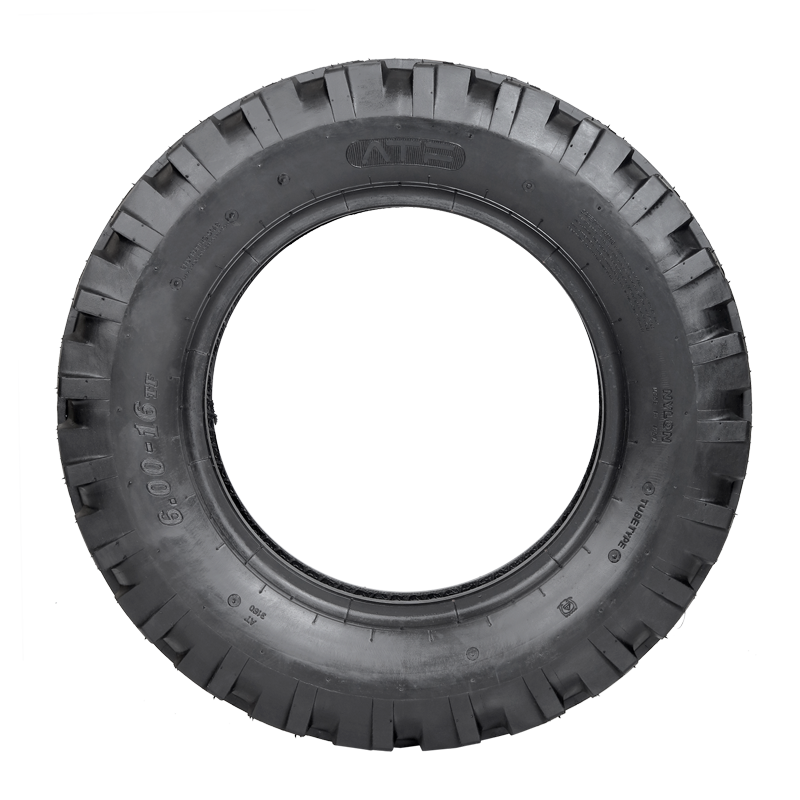

AT 3160

Notched Rib

TT/TL

Construction

Bias

Machinery

2WD Tractor

Applications

Transport, Soil Tillage

Description

AT 3160 is a 4-rib pattern tire designed with shoulder notches for enhanced grip during field operations. Its wider tread profile ensures optimal weight distribution, improving performance in both tillage and transport tasks. Built with a strong casing and premium tread compound, it offers extended tire life and consistent durability in demanding agricultural use.

Performance

  • Cut and Chip Resistance
  • Durability
  • High Load Capacity

Tyre Specifications

No items found.
Bead DiaTypeSizePly RatingStand Rim Overall DiameterSection WidthR.CSLR Loading CapacitySpeedSi/Li indexInflation pressure
inchmm inchmminchmmmm kglbskmphmphbarpsi
Tire Size Tread Rim Size Tyre Dimension in mm Load Carrying Capacity
on Forklift in Kg @ 25 Kmph
Outer Dia Sidewall Width Tread Width Load Wheel Steer Wheel
20" Notched Rib7.50-20 12 5.5 F 915 36 205 8.1 2725 431 1150 2535 40 25 113 A8 5.5 79
20" Notched Rib7.50-20 8 5.5 F 915 36 205 8.1 2725 431 925 2040 40 25 105 A8 3.85 56
20" Notched Rib6.50-20 8 5.0 F 860 33.9 180 7.1 2565 400 800 1760 40 25 100 A8 4.1 60
18" Notched Rib6.00-18 8 4.5 E 800 31.5 180 6.8 2410 374 710 1560 40 25 96 A8 3.3 48
16" Notched Rib7.50-16 8 5.5 F 820 32.3 205 8.1 2445 383 775 1710 40 25 99 A8 3.85 56
16" Notched Rib7.50-16 12 5.5 F 820 32.3 202 8.1 2445 383 975 2150 40 25 107 A8 5.4 78
16" Notched Rib6.00-16 8 4.5 E 740 29.1 170 6.7 2205 345 615 1350 40 25 91 A8 4.7 68
