AT 1990

R1W

TT/TL

Construction

Bias

Machinery

Tractor, Rear Wheel Drive

Applications

Soil Tillage, Field Transport

Description

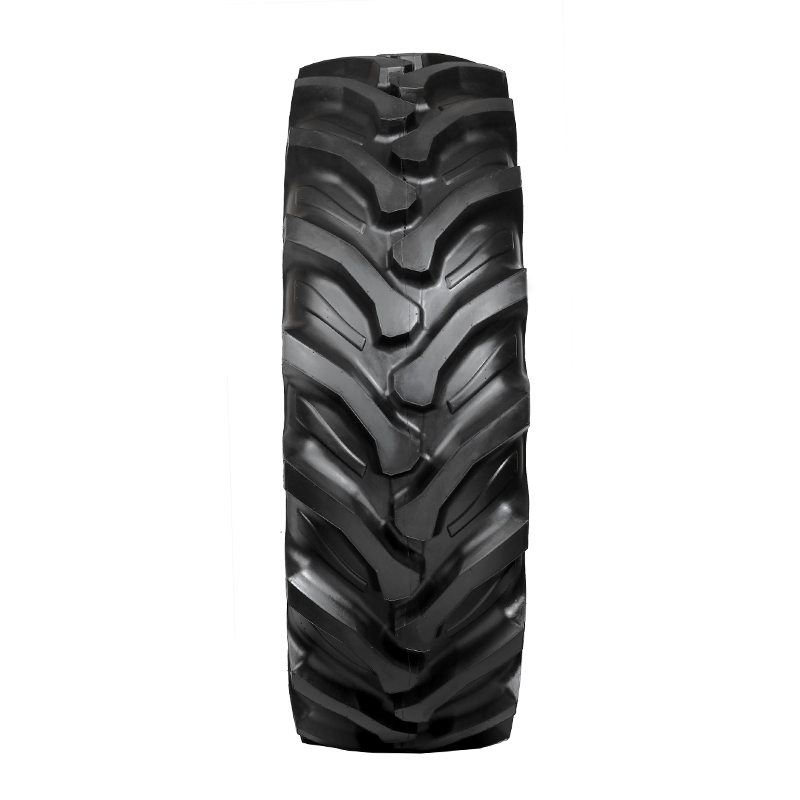

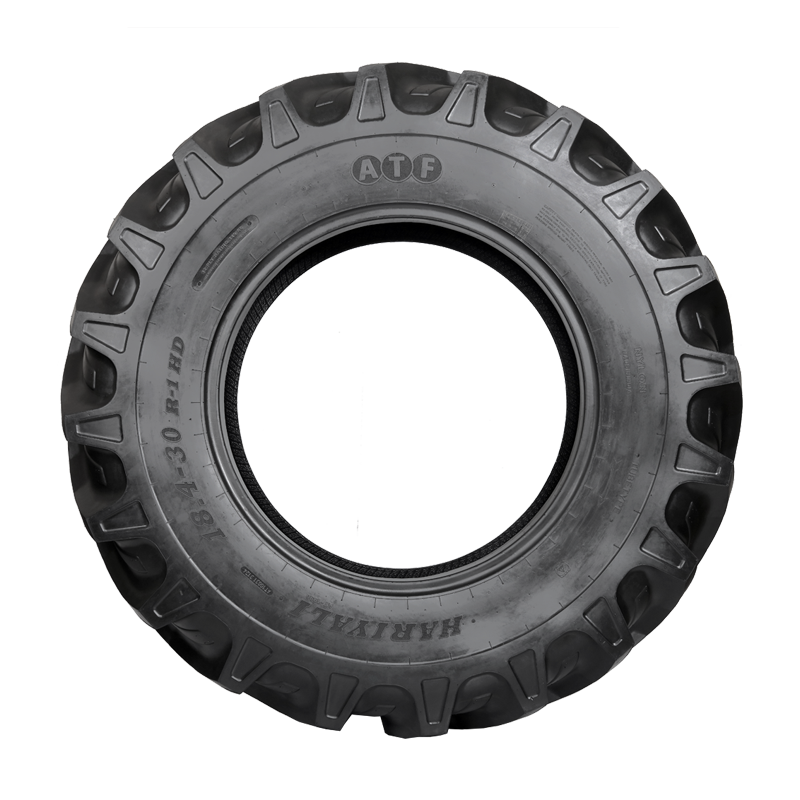

AT 1990 is a heavy-duty rear tire designed to support tractors in tillage and haulage operations. With deep lugs and a wide footprint, it provides solid traction and smoother ride quality on various terrains. The tire features a high-grade nylon casing and quality raw materials that enhance stability and reduce the risk of mechanical damage. Its tread design also helps clear soil and debris effectively, supporting long-term performance in demanding field conditions.

Performance

  • Deep Lug Traction
  • Enhanced Stability
  • Self-Cleaning
  • Comfortable Drive
  • Long Service Life

Tyre Specifications

No items found.
Bead DiaTypeSizePly RatingStand Rim Overall DiameterSection WidthR.CSLR Loading CapacitySpeedSi/Li indexInflation pressure
inchmm inchmminchmmmm kglbskmphmphbarpsi
Tire Size Tread Rim Size Tyre Dimension in mm Load Carrying Capacity
on Forklift in Kg @ 25 Kmph
Outer Dia Sidewall Width Tread Width Load Wheel Steer Wheel
28" R1W16.9-28 HD 16 W 15L 1435 56.5 430 16.9 4250 660 3350 7390 30 19 150 A6 3.2 46
34" R1W18.4-34 HD 16 W 16L 1650 65 467 18.4 4866 768 4125 9090 30 19 157 A6 2.8 41
34" R1W18.4-34 HD 14 W 16L 1650 65 467 18.4 4866 768 3750 8270 30 19 154 A6 2.6 38
34" R1W16.9-34 HD 16 W 15L 1585 62.4 429 16.9 4838 736 3150 6940 30 19 148 A6 2.7 39
34" R1W16.9-34 HD 14 W 15L 1585 62.4 429 16.9 4838 736 3000 6610 30 19 146 A6 2.5 36
30" R1W16.9-30 HD 16 W 15L 1485 58.5 429 16.9 4366 685 3250 7160 30 19 149 A6 3.2 46
30" R1W18.4-30 HD 14 W 16L 1565 61.6 465 18.3 4632 720 3450 7610 30 19 151 A6 2.6 38
30" R1W16.9-30 HD 14 W 15L 1485 58.5 429 16.9 4366 685 3000 6610 30 19 146 A6 2.8 41
30" R1W18.4-30 HD 16 W 16L 1565 61.6 465 18.3 4632 720 3650 8050 30 19 153 A6 2.9 42
28" R1W14.9-28 HD 14 W 13 1370 53.9 380 15 4055 630 2575 5680 30 19 141 A6 3 44
28" R1W16.9-28 HD 14 W 15L 1435 56.5 430 16.9 4250 660 3100 6830 30 19 147 A6 2.8 41
28" R1W13.6-28 HD 14 W 12 1320 52 350 13.8 3910 610 1900 4190 30 19 130 A6 2.5 36
28" R1W13.6-28 HD 12 W 12 1320 52 350 13.8 3910 610 1800 3970 30 19 128 A6 2.3 33
28" R1W12.4-28 HD 14 W 11 1270 50 318 12.5 3805 589 1700 3750 30 19 126 A6 2.6 38
28" R1W12.4-28 HD 12 W 11 1270 50 318 12.5 3805 589 1650 3640 30 19 125 A6 2.5 36
26" R1W18.4-26 HD 16 W 16L 1475 58.1 467 18.4 4250 650 3550 7820 30 19 152A6 2.9 42
26" R1W18.4-26 HD 14 W 16L 1475 58.1 467 18.4 4250 650 3250 7160 30 19 149 A6 2.6 38
24" R1W12.4-24 HD 12 W 11 1170 46 315 12.4 3573 543 1800 3970 30 19 128 A6 3.5 51
24" R1W12.4-24 HD 14 W 11 1170 46 315 12.4 3573 543 1900 4190 30 19 130 A6 4.1 59
26" R1W14.9-26 HD 12 W 12 1316 51.8 378 14.9 3895 605 2240 4940 30 19 136 A6 2.7 39
24" R1W9.5-24 HD 12 W 8 1060 41.7 245 9.6 3137 495 1360 3000 30 19 119 A6 4.1 59
24" R1W9.5-24 HD 8 W 8 1060 41.7 245 9.6 3137 495 1120 2470 30 19 112 A6 2.8 41
18" R1W8.00-18 HD 12 W 7 845 33.3 190 7.5 2515 390 1090 2403 30 19 111 A6 3.1 45
18" R1W8.00-18 HD 8 W 7 845 33.3 190 7.5 2515 390 750 1650 30 19 100 A6 2.6 38
