AT 1630

Construction

Bias

Machinery

Small & Medium Tractors

Applications

Soil Tillage, Rear Traction

Category
Agriculture Tires
R-1 Tractor Rear Drive Wheel Tires
Bias Row Crop Tires
Small Tractor/Tiller R-1 Tires

Description

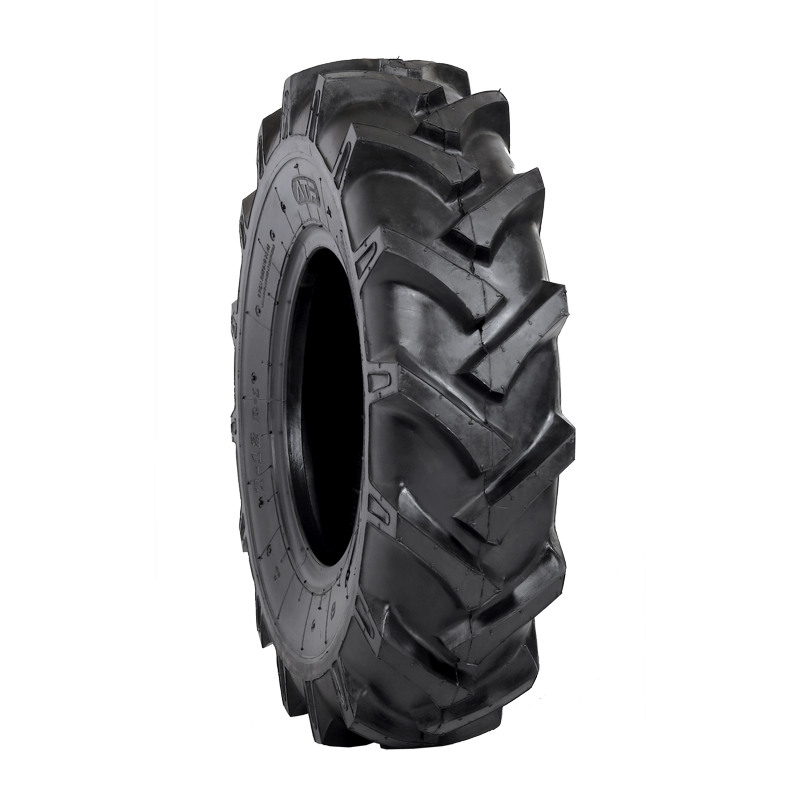

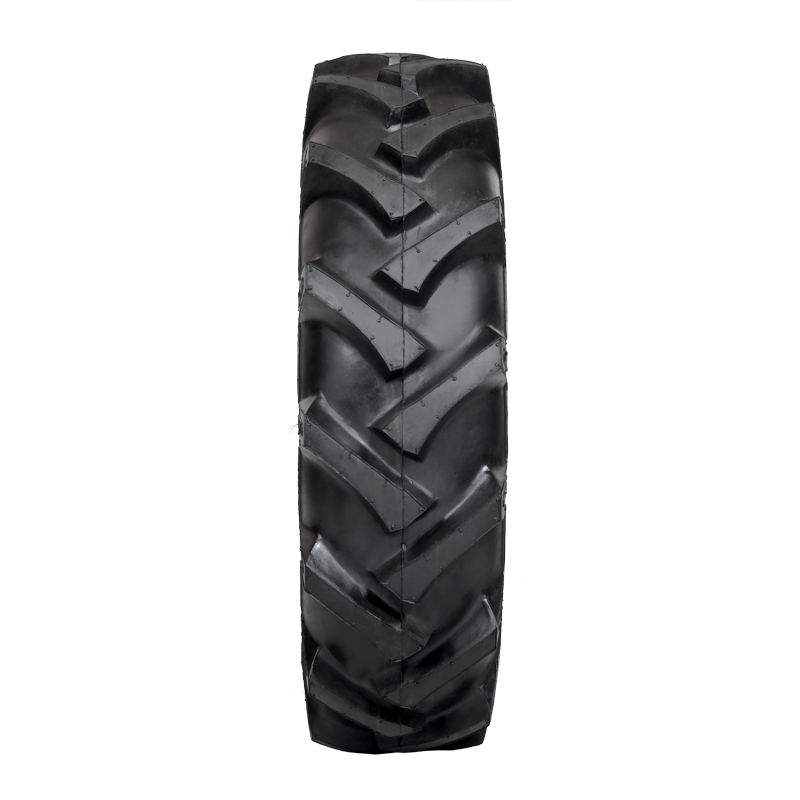

AT 1630 is a bias-ply rear tractor tire built for small to medium-sized tractors used in tillage and general field work. With strong nylon construction and deep-lug design, it ensures firm grip, dependable self-cleaning, and longer service life. It is well-suited for light-to-medium field operations where traction and handling are essential, especially in soft or muddy conditions.

Performance

  • Deep Lug Traction
  • Self-Cleaning
  • High Stability
  • Longer Service Life
  • Suitable for Small Implements

GET A QUOTE

Tyre Specifications

No items found.
Bead DiaTypeSizePatternPly RatingTT / TLStand Rim Overall DiameterSection WidthR.CSLR Loading CapacitySpeedSi/Li indexInflation pressure
inchmm inchmminchmmmm kglbskmphmphbarpsi
Tire Size Tread Rim Size Tyre Dimension in mm Load Carrying Capacity
on Forklift in Kg @ 25 Kmph
Outer Dia Sidewall Width Tread Width Load Wheel Steer Wheel
20" R18.3-20 AT 1630 12 TT/TL W 7 895 35.2 200 7.9 2608 419 1090 2403 30 19 111 A6 3.1 45
20" R18.3-20 AT 1630 8 TT/TL W 7 895 35.2 200 7.9 2608 419 825 1810 30 19 101 A6 2.5 36
20" R17.50-20 AT 1630 12 TT/TL 5.5F 904 35.6 209 8.2 2695 422 1250 2755 30 19 116 A6 4 58
20" R17.50-20 AT 1630 8 TT/TL 5.5F 904 35.6 209 8.2 2695 422 980 2160 30 19 107 A6 3.2 46
18" G1/R1250/80-18 AT 1630 10 TT/TL 8 857 33.7 251 9.9 2667 406 1360 3000 30 19 119 A6 2.8 41
18" G1/R19.5-18 AT 1630 8 TT/TL W 8 900 35.4 235 9.3 2692 420 925 2040 30 19 105 A6 3 43
19" R14.50-19 AT 1630 6 TT/TL 3.0D 736 29 120 4.7 2171 339 487 1074 30 19 83 A6 4.4 64
18" G1/R18-18 AT 1630 8 TT/TL W 7 845 33.3 190 7.5 2515 390 800 1760 30 19 100 A6 2.6 38
18" G1/R17.50-18 AT 1630 12 TT/TL 6 854 33.6 214 8.4 2540 406 1285 2832 30 19 117 A6 5.5 80
16" G1/R1250/80-16 AT 1630 8 TT/TL 8 816 32.1 240 9.4 2412 369 1285 2830 30 19 117 A6 2.8 41
16" G1/R19.5-16 AT 1630 8 TT/TL W 8L 840 33.1 235 9.3 2502 384 850 1870 30 19 102 A6 2.8 41
18" G1/R17.50-18 AT 1630 8 TT/TL 6 854 33.6 214 8.4 2540 406 950 2090 30 19 106 A6 3.7 54
16 G1/R19.0/75-16 AT 1630 8 TT/TL 8 774 30.5 229 9 2330 355 1060 2337 30 19 110 A6 4.4 63
16" G1/R18-16 AT 1630 6 TT/TL 6 785 30.9 200 7.9 2360 366 615 1360 30 19 91 A6 1.9 28
16" G1/R18.25-16 AT 1630 8 TT/TL 7 848 33.3 229 9 2540 354 1400 3090 30 19 120 A6 3.1 45
16" G1/R18-16 AT 1630 8 TT/TL 6 785 30.9 200 7.9 2360 366 750 1650 30 19 98 A6 2.6 38
12" R17-12 AT 1630 6 TT/TL 6 687 27 200 7.9 2007 305 487 1070 30 19 83 A6 2.5 36
16" G1/R17-16 AT 1630 6 TT/TL 6 742 29.2 183 7.2 2196 341 500 1100 30 19 84 A6 2.5 36
16" R17.50-16 AT 1630 8 TT/TL 5.5 F 800 31.5 205 8.1 2368 367 875 1930 30 19 103 A6 3.7 54
16" G1/R16.50-16 AT 1630 10 TT/TL 4.5 765 30.1 180 7 2184 330 1150 2535 30 19 113 A6 4 58
16" R17.50-16 AT 1630 12 TT/TL 5.5 F 800 31.5 205 8.1 2368 367 1150 2535 30 19 113 A6 4.96 72
16" G1/R16.50-16 AT 1630 8 TT/TL 4.5 765 30.1 180 7 2184 330 1035 2280 30 19 109 A6 3.75 54
16" R16.00-16 AT 1630 8 TT/TL 5 735 28.9 165 6.5 2100 330 670 1480 30 19 94 A6 4.5 65
16" G1/R14.50-16 AT 1630 6 TT/TL 3.0 D 655 25.8 122 4.8 1952 311 365 800 30 19 73 A6 3.2 47
16" R14.00-16 AT 1630 6 TT/TL 3.0 D 628 24.7 110 4.3 1835 307 530 1168 30 19 86 A6 3.25 47
15" G1/R18.0/75-15 AT 1630 6 TT/TL 6.5 708 27.9 199 7.8 2093 326 800 1760 30 19 100 A6 2.5 36
15" G1/R17.50-15 AT 1630 8 TT/TL 6 770 30.3 208 8.1 2308 359 1285 2830 30 19 117 A6 5 72
15" G1/R17.5L-15 AT 1630 8 TT/TL 6 765 31.2 210 8.2 2286 356 890 1960 30 19 104 A6 3.7 54
15" G1/R17.00-15 AT 1630 8 TT/TL 5.5 715 28.1 183 7.2 2126 331 1050 2310 30 19 110 A6 3.6 52
15" G1/R1690x180-15 AT 1630 6 TT/TL 5 690 27.2 176 6.9 2055 322 810 1790 30 19 101 A6 2.3 36
15" G1/R26.5/80-16 AT 1630 12 TT/TL 5.1 664 26.1 164 6.5 1977 311 1400 3085 30 19 120 A6 5.8 84
15" G1/R16.5/80-15 AT 1630 6 TT/TL 5 683 26.9 170 6.7 1976 310 840 1850 30 19 101 A6 3.6 52
15" G1/R15.00-15 AT 1630 6 TT/TL 4 657 25.8 145 5.7 1956 305 387 850 30 19 75 A6 3.6 51
15" G1/R15.90-15 AT 1630 6 TT/TL 4.5 663 26.1 160 6.3 1976 310 825 1820 30 19 101 A6 2.1 30
14" G1/R17-14 AT 1630 6 TT/TL 6 691 27.2 180 7.2 2057 330 450 990 30 19 80 A6 2.5 36
14" G1/R16-14 AT 1630 6 TT/TL 5.0 JA, 5.0 KB 655 25.8 157 6.2 1965 387 850 30 19 75 A6 2.2 32
13" R16.5/80-13 AT 1630 6 TT/TL 5 642 25.3 171 6.7 1765 280 770 1700 30 19 99 A6 3.6 52
12" R17-12 AT 1630 8 TT/TL 6 687 27 187 7.9 2007 305 615 1356 30 19 91 A6 3.3 47
12" R16-12 AT 1630 6 TT/TL 4 630 24.8 160 6.3 1901 293 400 882 30 19 76 A6 2.6 38
12" R16.5/80-12 AT 1630 6 TT/TL 5 569 22.4 162 6.4 1685 260 505 1110 30 19 85 A6 3.6 52
12" R16.00-12 AT 1630 6 TT/TL 4 630 24.8 160 6.3 1901 293 400 882 30 19 76 A6 2.6 38
8" R14.00-8 AT 1630 4 TT/TL 3.0 D 418 16.5 114 4.5 1220 185 272 600 30 19 63 A6 3.3 48
12" R16.00-12 AT 1630 6 TT/TL 4 630 24.8 160 6.3 1901 293 400 882 30 19 76 A6 2.6 38
12" R15.00-12 AT 1630 6 TT/TL 3.0 D 580 22.8 130 5.1 1731 271 307 580 30 19 67 A6 2.8 41
12" R15.00-12 AT 1630 6 TT/TL 3.0 D 580 22.8 130 5.1 1731 271 307 580 30 19 67 A6 2.8 41
10" R15.00-10 AT 1630 4 TT/TL 3.0 D 512 20.1 140 5.5 1508 235 305 670 30 19 67 A6 2.25 33
10" R14.00-10 AT 1630 4 TT/TL 3.0 D 466 18.3 110 4.3 1364 217 290 640 30 19 65 A6 2.75 40
12" R14.00-12 AT 1630 4 TT/TL 3.0 D 525 20.7 120 4.7 1546 241 210 460 30 19 54 A6 1.5 22

Related Products

AT 999

AT 909 is a high-strength, 14-ply tire engineered for heavy-duty hauling in agricultural and light industrial applications. With a size of 8-14.5, it features a ribbed tread pattern that ensures stability, smooth road handling, and extended tire life. Designed to carry up to 3500 lbs at 115 PSI, the AT 909 delivers exceptional load performance while maintaining a compact, efficient profile.

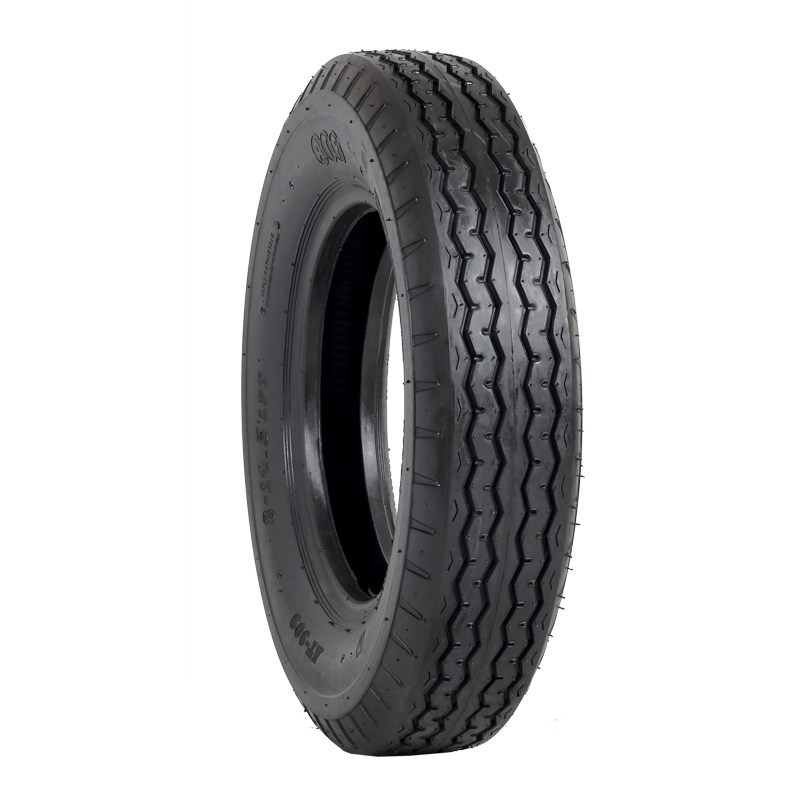

AT 909
