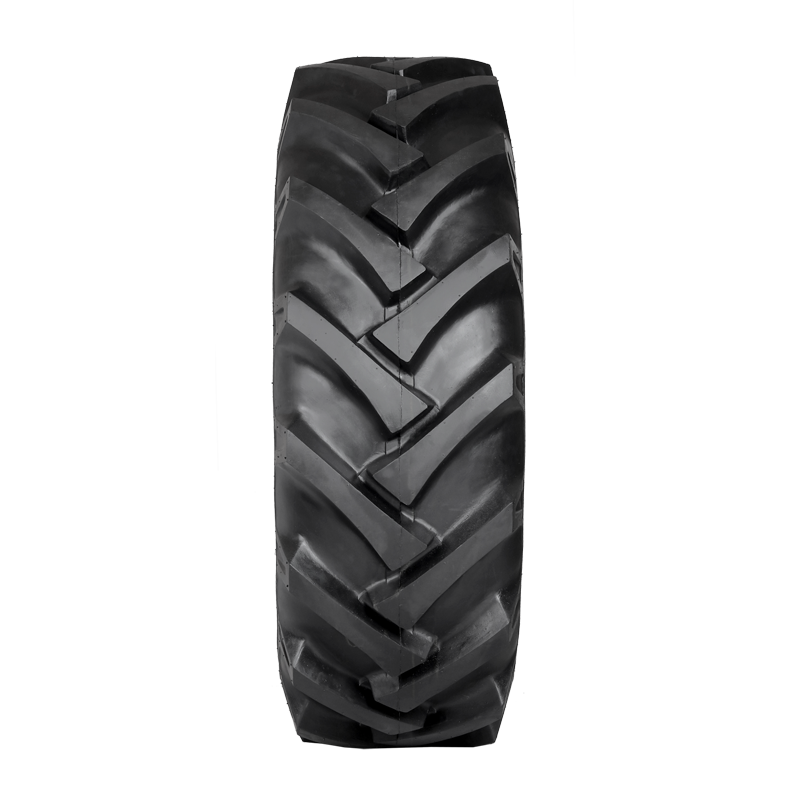

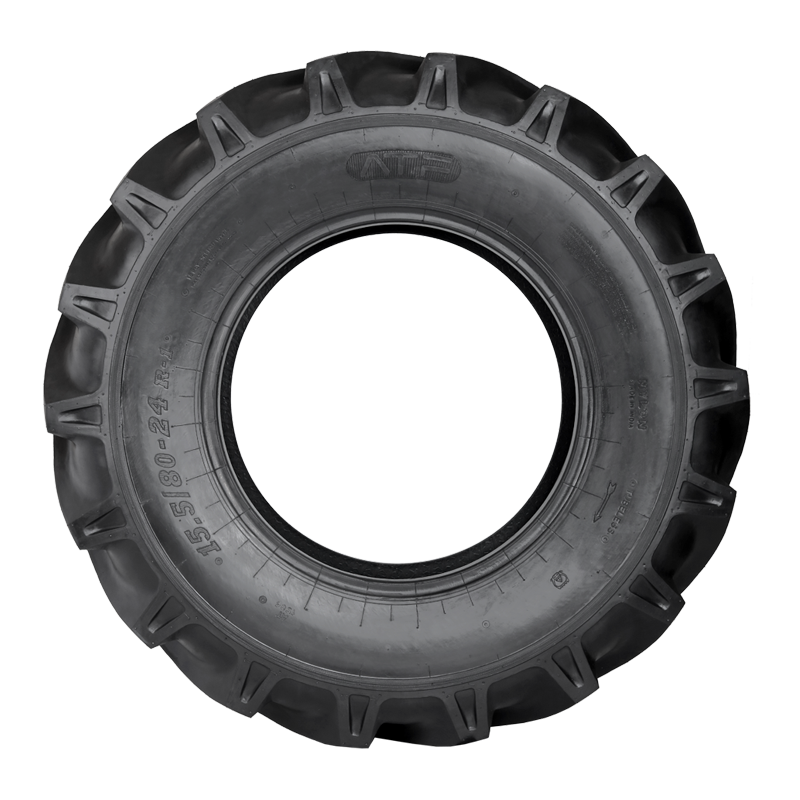

AT 1504

R1 HD

TT/TL

Construction

Bias

Machinery

Tractor, Rear Drive

Applications

Soil Tillage, Field Operations

Description

AT 1504 is designed for tractors that operate in field environments requiring extra stability and surface contact. The tread design, combined with a broader contact patch, delivers excellent ground grip and vehicle balance. Its structure offers high resistance to cuts and abrasion, making it a durable choice for long hours in challenging agricultural conditions.

Performance

  • Large Contact Area
  • Enhanced Stability
  • Wear & Cut Resistance
  • Long Lifespan
  • Reliable in Tough Conditions

Tyre Specifications

No items found.
Bead DiaTypeSizePly RatingStand Rim Overall DiameterSection WidthR.CSLR Loading CapacitySpeedSi/Li indexInflation pressure
inchmm inchmminchmmmm kglbskmphmphbarpsi
Tire Size Tread Rim Size Tyre Dimension in mm Load Carrying Capacity
on Forklift in Kg @ 25 Kmph
Outer Dia Sidewall Width Tread Width Load Wheel Steer Wheel
24" R1 HD15.5/80-24 16 W 13 / W 14L 1260 49.6 385 15.2 3655 566 3110 6850 40 25 159 A8 4 58
24" R1 HD15.5/80-24 12 W 13 / W 14L 1260 49.6 385 15.2 3655 566 2610 5750 40 25 154 A8 3 44
24" R1 HD14.9-24 16 W 13 1265 49.8 378 14.9 3837 576 2400 5290 40 25 139 A8 3.5 51
24" R1 HD14.9-24 12 W 13 1265 49.8 378 14.9 3837 576 2000 4400 40 25 132 A8 2.6 38
