AT 1360

R1

TT/TL

Construction

Bias

Machinery

Tractor

Applications

Steering, Field Operations

Category
Agriculture Tires
R-1 Tractor Rear Drive Wheel Tires

Description

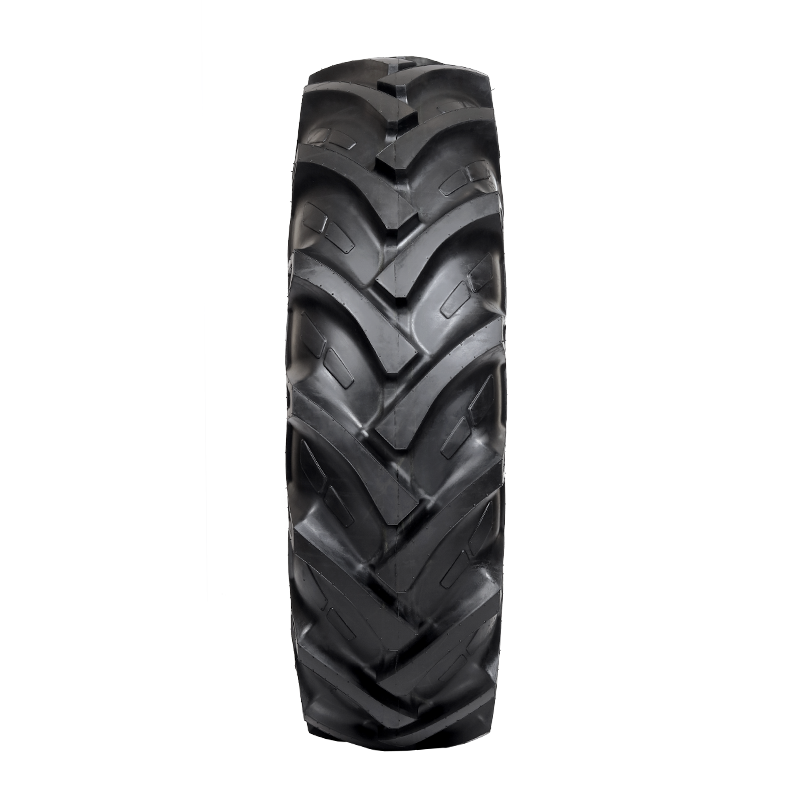

AT 1360 is a reliable front-axle tire designed for tractors operating in agricultural fields. It offers solid steering performance, strong resistance to wear and tear, and dependable traction in muddy or soft soil. Built with a tough nylon casing and optimized tread layout, it ensures stable handling and long-lasting performance.

Performance

  • Steering Stability
  • Damage Resistance
  • Self-Cleaning Tread
  • Long Service Life
  • Anti-Slip Control

GET A QUOTE

Tyre Specifications

No items found.
Bead DiaTypeSizePly RatingStand Rim Overall DiameterSection WidthR.CSLR Loading CapacitySpeedSi/Li indexInflation pressure
inchmm inchmminchmmmm kglbskmphmphbarpsi
Tire Size Tread Rim Size Tyre Dimension in mm Load Carrying Capacity
on Forklift in Kg @ 25 Kmph
Outer Dia Sidewall Width Tread Width Load Wheel Steer Wheel
32" R130.5-32 16 DW27B 1865 73.4 770 30.3 5520 831 5000 11025 30 19 164A6 2.7 39
24" R124.5-32 16 DW21A 1803 71 622 24.5 5343 807 5000 11025 30 19 164A6 2.1 30
30" R123.1-30 16 DW 20 AB 1700 66.9 600 23.6 5217 773 4000 8820 30 19 156A6 2.25 33
24" Irri FullLug16.9-24 10 W 15L 1335 52.6 429 16.9 3950 615 2240 4940 30 19 136 A6 2 29
24" Irri FullLug16.9-24 8 W 15L 1335 52.6 429 16.9 3950 615 2060 4542 30 19 133 A6 1.7 25
38" R118.4-38 8 W 16L 1750 68.9 465 18.3 5145 815 2430 5360 40 25 139 A8 1.4 20
42" R118.4-42 14 W 16L 1857 73.1 487 19.2 5460 864 3650 8050 40 25 153 A8 2.5 36
42" R112.4-42 10 W 10 1630 64.1 322 12.7 5011 770 2060 4541 40 25 133 A8 2.8 40
38" R120.8-38 16 W 18L 1835 72.2 530 20.9 5395 852 4125 9090 40 25 157 A8 2.5 36
34" R118.4-34 10 W 16L 1650 65 465 18.3 4851 766 2725 6000 40 25 143 A8 1.8 26
34" R116.9-34 14 W 15L 1585 62.4 429 16.9 4838 736 2575 5675 40 25 141 A8 2.3 34
26" R116.9-26 14 W 15L 1384 54.5 420 16.5 4183 625 2300 5070 40 25 137 A8 2.4 35
38" R120.8-38 14 W 18L 1835 72.2 530 20.9 5395 852 3875 8550 40 25 155 A8 2.2 32
38" R120.8-38 12 W 18L 1835 72.2 530 20.9 5395 852 3550 7850 40 25 152 A8 1.9 28
38" R118.4-38 16 W 16L 1750 68.9 465 18.3 5145 815 3550 7820 40 25 152 A8 2.8 40
38" R120.8-38 10 W 18L 1835 72.2 530 20.9 5395 852 3150 6940 40 25 148 A8 1.8 26
38" R118.4-38 14 W 16L 1750 68.9 465 18.3 5145 815 3450 7600 40 25 151 A8 2.5 36
38" R118.4-38 12 W 16L 1750 68.9 465 18.3 5145 815 3250 7150 40 25 149 A8 2.2 32
38" R118.4-38 10 W 16L 1750 68.9 465 18.3 5145 815 2900 6400 40 25 145 A8 1.8 26
38" R116.9-38 14 W 15L 1685 66.3 429 16.9 4954 788 2725 6000 40 25 143 A8 2.6 38
38" R116.9-38 12 W 15L 1685 66.3 429 16.9 4954 788 2575 5680 40 25 141 A8 2.3 33
38" R116.9-38 10 W 15L 1685 66.3 429 16.9 4954 788 2360 5200 40 25 138 A8 2 29
38" R116.9-38 8 W 15L 1685 66.3 429 16.9 4954 788 2240 4940 40 25 136 A8 1.65 24
38" R115.5-38 12 W 14L 1585 62.4 395 15.6 4660 746 2240 4940 40 25 136 A8 2.6 38
38" R115.5-38 14 W 14L 1585 62.4 395 15.6 4660 746 2430 5360 40 25 139 A8 3 44
38" R115.5-38 8 W 14L 1585 62.4 395 15.6 4660 746 1950 4300 40 25 131 A8 1.8 26
38" R115.5-38 10 W 14L 1585 62.4 395 15.6 4660 746 2060 4540 40 25 133 A8 2.2 32
38" R114.9-38 14 W 14L 1585 62.4 395 15.6 4660 746 2430 5360 40 25 139 A8 3 44
38" R114.9-38 12 W 14L 1585 62.4 395 15.6 4660 746 2240 4940 40 25 136 A8 2.6 38
38" R114.9-38 10 W 14L 1585 62.4 395 15.6 4660 746 2060 4540 40 25 133 A8 2.2 32
38" R114.00-38 14 W 12 1565 61.6 345 13.6 4661 738 2430 4800 40 25 139 A8 3.2 46
38" R114.00-38 12 W 12 1565 61.6 345 13.6 4661 738 2180 4800 40 25 135 A8 2.9 42
38" R114.00-38 10 W 12 1565 61.6 345 13.6 4661 738 1900 4180 40 25 130 A8 2.35 34
38" R114.00-38 8 W 12 1565 61.6 345 13.6 4661 738 1700 3740 40 25 126 A8 1.9 28
38" R113.6-38 14 W 12 1565 61.6 345 13.6 4661 738 2430 4800 40 25 139 A8 3.2 46
38" R113.6-38 10 W 12 1565 61.6 345 13.6 4661 738 1900 4180 40 25 130 A8 2.35 34
38" R113.6-38 12 W 12 1565 61.6 345 13.6 4661 738 2180 4800 40 25 135 A8 2.9 42
38" R113.6-38 8 W 12 1565 61.6 345 13.6 4661 738 1700 3740 40 25 126 A8 1.9 28
34" R120.8-34 12 W 18L 1732 68.2 528 20.8 5109 797 3250 7160 40 25 149 A8 1.8 26
34" R120.8-34 14 W 18L 1732 68.2 528 20.8 5109 797 3450 7600 40 25 151 A8 2.1 30
34" R120.8-34 16 W 18L 1732 68.2 528 20.8 5109 797 3650 8050 40 25 153 A8 2.3 34
34" R118.4-34 14 W 16L 1650 65 465 18.3 4851 766 3250 7160 40 25 149 A8 2.6 38
34" R118.4-34 16 W 16L 1650 65 465 18.3 4851 766 3550 7830 40 25 152 A8 3 44
34" R118.4-34 12 W 16L 1650 65 465 18.3 4851 766 3000 6600 40 25 146 A8 2.2 32
34" R118.4-34 8 W 16L 1650 65 465 18.3 4851 766 2300 5080 40 25 137 A8 1.4 20
34" R116.9-34 10 W 15L 1585 62.4 429 16.9 4838 736 2360 5200 40 25 138 A8 1.9 28
34" R116.9-34 12 W 15L 1585 62.4 429 16.9 4838 736 2500 5510 40 25 140 A8 2.2 32
34" R116.9-34 8 W 15L 1585 62.4 429 16.9 4838 736 2120 4680 40 25 134 A8 1.65 24
30" R123.1-30 18 DW 20 AB 1700 66.92 600 23.6 5217 773 5000 11023 30 19 164A6 2.6 38
30" R123.1-30 12 DW 20 AB 1700 66.9 600 23.6 5217 773 3876 8545 30 19 155 A6 1.75 25
30" R123.1-30 16 DW 20 AB 1700 66.9 600 23.6 5217 773 4500 9920 30 19 160 A6 2.1 30
30" R118.4-30 14 W 16L 1545 60.8 460 18.1 4542 714 3250 7160 40 25 149 A8 2.5 36
30" R118.4-30 16 W 16L 1545 60.8 460 18.1 4542 714 3450 7610 40 25 151 A8 2.8 41
30" R118.4-30 12 W 16L 1545 60.8 460 18.1 4542 714 2900 6400 40 25 145 A8 2.2 32
30" R118.4-30 8 W 16L 1545 60.8 460 18.1 4542 714 2180 4800 40 25 135 A8 1.4 20
30" R116.9-30 14 W 15L 1485 58.5 430 16.9 4366 688 2725 6000 40 25 143 A8 2.8 40
30" R116.9-30 12 W 15L 1485 58.5 430 16.9 4366 688 2500 5520 40 25 140 A8 2.3 34
30" R116.9-30 10 W 15L 1485 58.5 430 16.9 4366 688 2240 4940 40 25 136 A8 1.9 28
30" R116.9-30 8 W 15L 1485 58.5 430 16.9 4366 688 2000 4400 40 25 132 A8 1.65 24
30" R114.9-30 12 W 11, W 12 1415 55.7 378 14.9 4316 659 2100 4630 40 25 134 A8 2.5 36
30" R114.9-30 10 W 11, W 12 1415 55.7 378 14.9 4316 659 1950 4300 40 25 131 A8 2.2 32
30" R114.9-30 8 W 11, W 12 1415 55.7 378 14.9 4316 659 1750 3860 40 25 127 A8 1.8 26
28" R116.9-28 16 W 15L 1435 56.5 430 16.9 4310 655 2500 5510 40 25 140 A8 2.6 37
28" R116.9-28 12 W 15L 1435 56.5 430 16.9 4310 655 2240 4930 40 25 136 A8 2.1 30
28" R116.9-28 10 W 15L 1435 56.5 430 16.9 4310 655 2120 4680 40 25 134 A8 1.9 28
28" R116.9-28 8 W 15L 1435 56.5 430 16.9 4310 655 1950 4300 40 25 131 A8 1.65 24
28" R114.9-28 12 W 13 1361 53.6 375 14.8 4013 634 2060 4540 40 25 133 A8 2.6 38
28" R114.9-28 14 W 13 1361 53.6 375 14.8 4013 634 2120 4674 40 25 134 A8 3.3 48
28" R113.6-28 8 W 12 1310 51.6 345 13.6 3851 610 1500 3300 40 25 122 A8 1.9 28
28" R113.6-28 12 W 12 1310 51.6 345 13.6 3851 610 1900 4180 40 25 130 A8 2.9 42
28" R114.9-28 8 W 13 1361 53.6 375 14.8 4013 634 1700 3740 40 25 126 A8 1.8 26
28" R112.4-28 12 W 11 1260 49.6 320 12.6 3704 889 1450 3200 40 25 121 A8 2.4 35
28" R112.4-28 8 W 11 1260 49.6 320 12.6 3704 889 1400 3090 40 25 120 A8 2.2 32
28" R112.4-28 6 W 11 1260 49.6 320 12.6 3704 889 1150 2540 40 25 113 A8 1.7 24
28" R111.2-28 12 W 10 1205 47.4 280 11 3540 565 1320 2910 40 25 118 A8 2.6 38
28" R111.2-28 8 W 10 1205 47.4 280 11 3540 565 1120 2470 40 25 112 A8 2.1 30
26" R123.1-26 18 DW 20 AB 1585 62.4 587 23.1 4615 700 4125 9094 40 25 157 A8 2.4 35
26" R118.4-26 12 W 16L 1450 57.1 420 16.5 4250 650 2650 5840 40 25 142 A8 2.2 32
26" R123.1-26 14 DW 20 AB 1585 62.4 587 23.1 4615 700 3550 7850 40 25 152 A8 1.9 28
26" R118.4-26 14 W 16L 1450 57.1 467 18.4 4250 650 3075 6780 40 25 147 A8 2.6 38
26" R123.1-26 12 DW 20 AB 1585 62.4 587 23.1 4615 700 3250 7150 40 25 149 A8 1.7 24
26" R123.1-26 16 DW 20 AB 1585 62.4 587 23.1 4615 700 3875 8540 40 25 155 A8 2.2 32
26" R116.9-26 12 W 15L 1384 54.5 429 16.9 4183 625 2060 4540 40 25 133 A8 1.9 28
26" R114.9-26 12 W 13 1315 51.8 385 15.2 3863 608 2000 4410 40 25 132 A8 2.5 36
26" R114.9-26 8 W 13 1315 51.8 385 15.2 3863 608 1650 3640 40 25 125 A8 1.8 26
26" R113.6-26 12 W 12 1270 50 352 13.9 3657 562 1900 4188 40 25 130 A8 2.9 42
26" R113.6-26 8 W 12 1270 50 352 13.9 3657 562 1600 3530 40 25 124 A8 2.39 34
24" R116.5/80-24 12 W 15L 1335 52.6 425 16.7 3950 615 2060 4540 40 25 133 A8 2.2 32
24" R116.5/80-24 8 W 15L 1335 52.6 425 16.7 3950 615 1850 4080 40 25 129 A8 1.7 24
24" R116.9-24 12 W 15L 1335 52.6 425 16.7 3950 615 2060 4540 40 25 133 A8 2.2 32
24" R114.9-24 12 W 13 1265 49.8 375 14.8 3719 583 2000 4410 40 25 132 A8 2.6 38
24" R116.9-24 8 W 15L 1335 52.6 425 16.7 3950 615 1850 4080 40 25 129 A8 1.7 24
24" R114.9-24 8 W 13 1265 49.8 375 14.8 3719 583 1600 3520 40 25 124 A8 1.8 26
24" R113.6-24 8 W 12 1190 46.9 345 13.6 3657 562 1400 3080 40 25 120 A8 1.9 28
24" R113.6-24 12 W 12 1190 46.9 345 13.6 3657 562 1500 3300 40 25 122 A8 2.2 32
24" R112.4-24 12 W 11 1160 45.7 315 12.4 3410 539 1600 3520 40 25 124 A8 3.3 48
24" R112.4-24 8 W 11 1160 45.7 315 12.4 3410 539 1285 2830 40 25 117 A8 2.2 32
24" R112.4-24 8 W 11 1160 45.7 315 12.4 3410 539 1285 2830 40 25 117 A8 2.2 32
